Vortice AE Axial Plate Fan 300mm

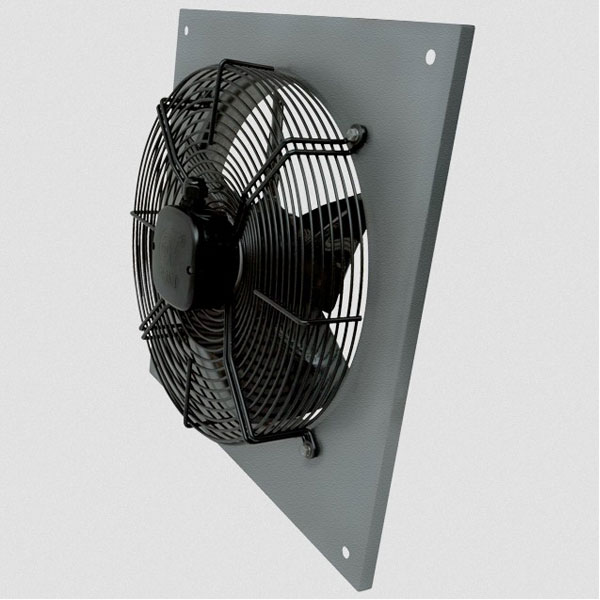

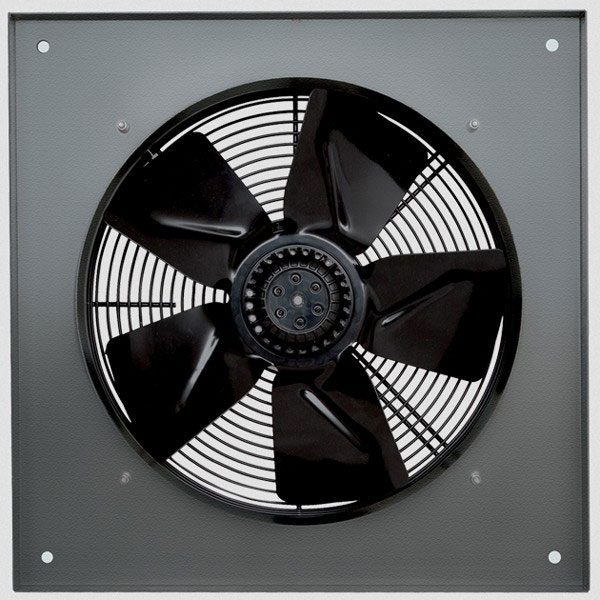

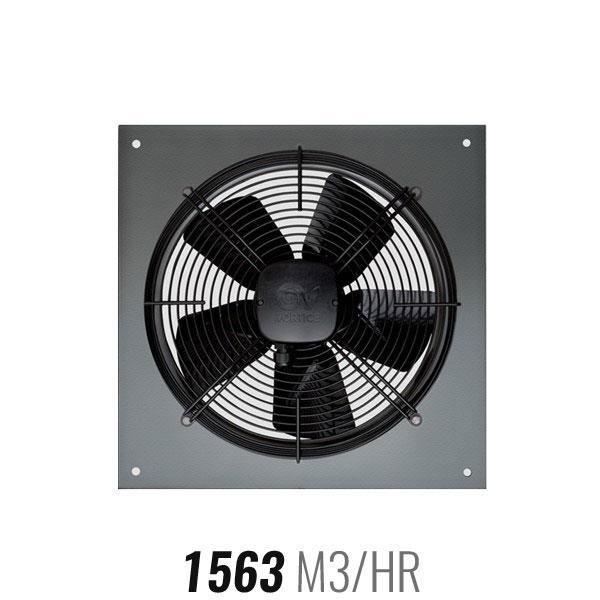

Vortice A-E Features Overview: Installation Wall / Ceiling Hole Size 316mm Extraction Rate 1563 m3/hr Noise 63.5 dB(A) Motor Wattage 81w Ductable No The panels are made of pressed steel, phosphated and epoxy powder coated with a hammered effect finish, guaranteeing long-term resistance to atmospheric agents. Ventilation port fashioned in one piece with the panel, gauged to optimize air flow, aerodynamically contoured and elongated to optimize performance and facilitate connection to the relative duct. Protective grille combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan. 1 speed single phase AC motor of external rotor type designed to minimize axial dimensions, with shaft turning in ball bearings, insulation class F, thermal overload protection. Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); 5 pressed steel blades, electrolytically galvanized and polyester powder-coated, colour black.
