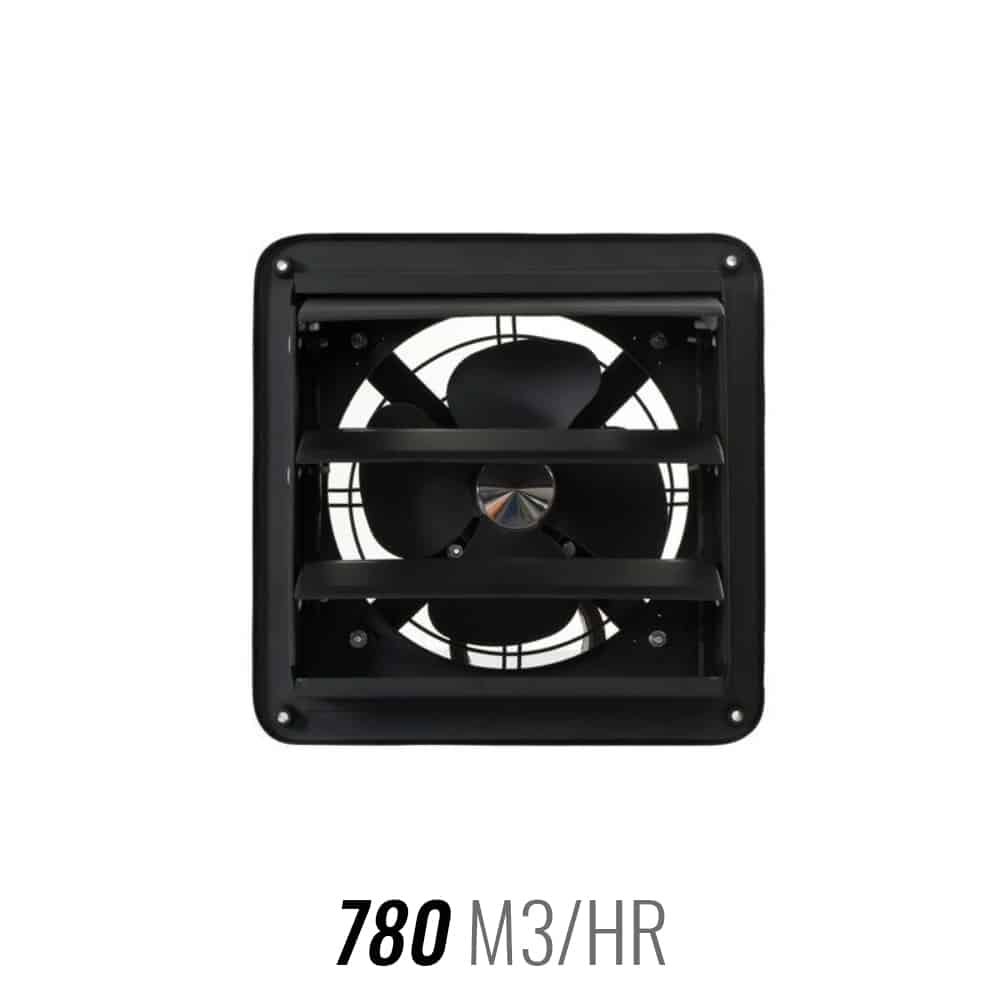

Commercial Wall Fan 200 with Gravity Shutters

Commercial Wall Fan Features Overview: Installation Wall Hole Size 242mm square Fascia Size 285mm square Extraction Rate 780 m3/hr (217 l/s) Noise <45 dB(A) Motor Wattage 45W Ductable No The commercial wall exhaust fan can extract heat, air, or dust and ventilate a space such as a factory or garage. The fan is designed to extract large volumes of air (the fan has a huge capacity of 780 m3/hr) at a relatively low noise. The fan is easy to install, it comes with a 45W motor ready to be hardwired. This fan is designed to be wall-mounted only. The manufacturer recommends fabricating a wooden frame that can be fixed to the wall. You can then secure the fan to the wooden frame with screws. Refer to this installation manual for more information: Commercial Wall Fan Installation Instruction Refer to this spec sheet for more information: Commercial Wall Fan Spec Sheet Please note: Installation should be carried out following the IWEL Installation Manual, available for download from our website.
