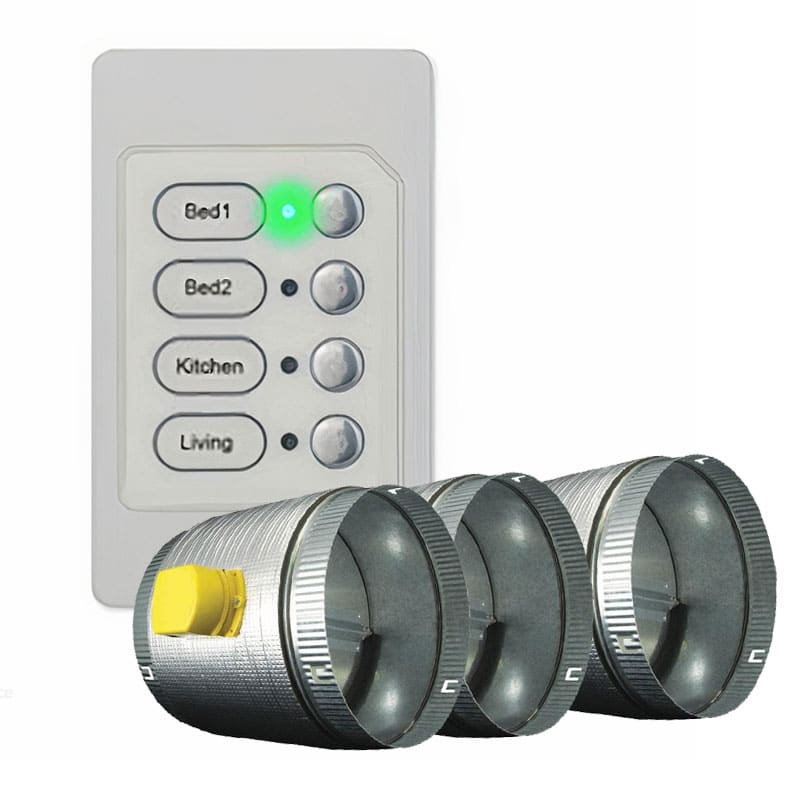

Electronic Zoning Kit for 3 Rooms – 150mm Dampers

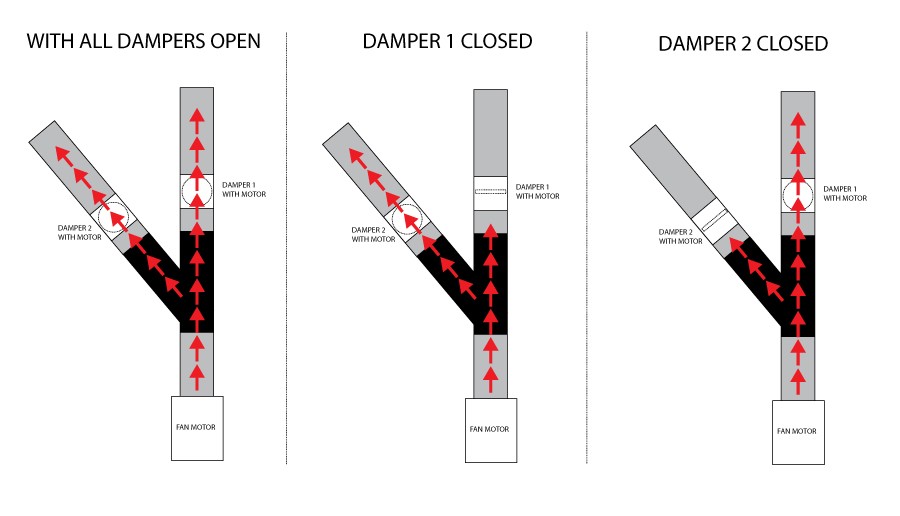

Installation Requirements The Zoning system is designed for a simple installation process. The touch panel should be in the central position, either flush mounted to the wall or mounted on a mounting block of 15mm in size. The touch panel must be at least a distance of 250mm away from 240VAC cabling. The touch panel will connect to a relay module. Which will need to be mounted in the roof space, provided it is next to a vacant power point. Cabling needs to run from the touch panel to the relay module, having the relay module connected to the necessary power point. 24v dampers connect to the wall control, and then to a transformer which converts to 230-40 standard and plugs into a powerpoint.
