Johnson Controls AS-ZTU100-1 Zone Terminal for Metasys ASC – 24VAC, 18 Analog & 18 Binary Points, LCD Display

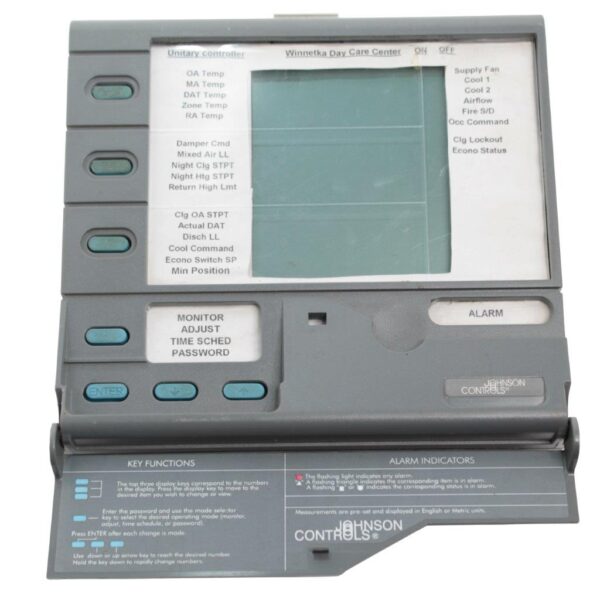

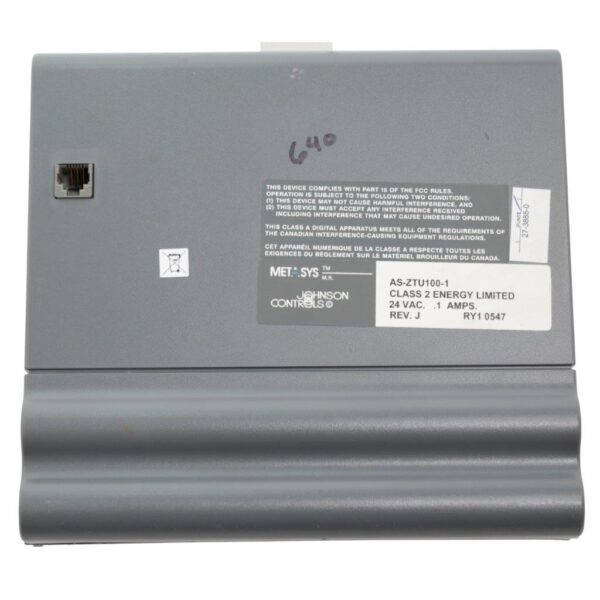

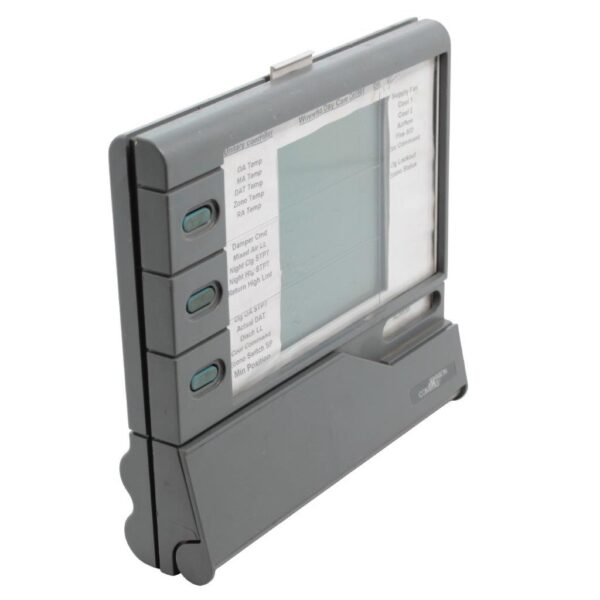

Johnson Controls AS-ZTU100-1 Zone Terminal for Metasys ASC – 24VAC, 18 Analog & 18 Binary Points, LCD Display Condition: Used. Good used condition. Fully functional with minor signs of cosmetic wear. The Johnson Controls AS-ZTU100-1 Zone Terminal is a versatile human-machine interface (HMI) designed for the Metasys Application Specific Controllers (ASC). This device allows users to monitor and adjust setpoints, as well as manage time scheduling within specific zones. It can be used as a handheld tool or wall-mounted interface, providing flexibility in various HVAC control applications. Features Model: AS-ZTU100-1 Power Requirements: 24 VAC at 0.05 A (1.2 VA), Class 2 energy limited Display: 5-digit LCD capable of displaying 3 analog inputs/outputs or setpoints, plus 18 binary status/mode points User Interface: Seven-button keypad with mode selector and up/down arrows Connectivity: 6-pin RJ12 telephone-style jack for connection to controllers Timekeeping: 7-day, 24-hour battery-backed clock with scheduling capabilities Battery Backup: 5-year lithium battery maintains timekeeping and scheduling during power outages Security: Three levels of password protection to restrict access to monitoring, adjustment, and scheduling functions Dimensions: 6.88 x 7.31 x 1.52 inches (175 x 186 x 39 mm) Weight: 1.25 lbs (0.57 kg) Operating Conditions: 32°F to 122°F (0°C to 50°C); 10% to 90% RH, non-condensing Compliance: UL916 Listed, CSA Certified, FCC Part 15 Subpart J – Class A Applications HVAC Systems: Monitoring and adjusting setpoints in heating, ventilation, and air conditioning systems Building Automation: Integration with Metasys ASC for zone-specific control Commercial Buildings: Offices, schools, hospitals, and other facilities requiring precise environmental control Energy Management: Scheduling occupied, warm-up/cool-down, or shutdown conditions to optimize energy usage Cross-Referenced Models AS-ZTU100-0: Previous version with similar functionalities AS-ZTU100-2: Updated model with enhanced features AS-ZTU100-3: Variant designed for specific controller compatibility Comparable Products Honeywell T775 Series: Standalone controllers with scheduling and setpoint adjustment capabilities Siemens RDY2000: Room controller with touchscreen interface and scheduling functions Belimo ZTH US: Handheld tool for setting and monitoring actuator parameters System Integration The AS-ZTU100-1 Zone Terminal is designed to interface with Johnson Controls Metasys ASC, including: Unitary Controllers (UNT) Variable Air Volume Controllers (VAV) Air Handling Unit Controllers (AHU) It connects via a 6-pin RJ12 telephone-style jack and can be used in conjunction with: TE-6100 Series Zone Sensors AS-FMK100 Function Module Kit AS-RLY100 Relay Kit M100C Actuator Related Johnson Controls AS-ZTU100-1 Metasys Zone Terminal HVAC zone controller interface Building automation HMI ASC zone terminal unit 24VAC zone terminal LCD display HVAC controller Johnson Controls zone interface Common Requests: -What controllers are compatible with the AS-ZTU100-1? Compatible with Johnson Controls Metasys ASC, including UNT, VAV, and AHU controllers. -Can the AS-ZTU100-1 be wall-mounted? Yes, it can be used as a handheld device or mounted on a wall using appropriate mounting kits. -Does it support time scheduling? Yes, it features a 7-day, 24-hour battery-backed clock for scheduling occupied, warm-up/cool-down, or shutdown conditions. -What is the power requirement for this device? It operates on 24 VAC at 0.05 A (1.2 VA), Class 2 energy limited. -Is the AS-ZTU100-1 still in production? No, it has been discontinued by the manufacturer, but refurbished units may still be available. All product names, trademarks, and registered trademarks are the property of their respective owners. Use of these names does not imply any affiliation or endorsement. P116
